Прямой BSP с уплотнением

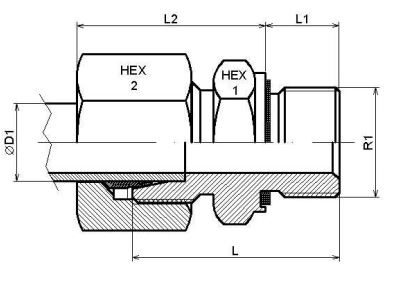

Прямой штуцер, BSP цилиндрическая резьба с уплотнением, в сборе с гайкой и кольцом, нержавеющая сталь AISI 316-L
|
Код |
Труба |
Серия |
резьба |
|
Z AL 6 R 1/8WD |
6 |
L |
1/8″BSP |
|
Z AL 6 R 1/4WD |
6 |
L |
1/4″BSP |
|
Z AL 6 R 3/8WD |
6 |
L |
3/8″BSP |
|
Z AL 8 R 1/8WD |
8 |
L |
1/8″BSP |
|
Z AL 8 R 1/4WD |
8 |
L |
1/4″BSP |
|
Z AL 8 R 3/8WD |
8 |
L |
3/8″BSP |
|
Z AL 8 R 1/2WD |
8 |
L |
1/2″BSP |
|
Z AL 10 R 1/8WD |
10 |
L |
1/8″BSP |
|
Z AL 10 R 1/4WD |
10 |
L |
1/4″BSP |
|
Z AL 10 R 3/8WD |
10 |
L |
3/8″BSP |
|
Z AL 10 R 1/2WD |
10 |
L |
1/2″BSP |
|
Z AL 12 R 1/4WD |
12 |
L |
1/4″BSP |
|
Z AL 12 R 3/8WD |
12 |
L |
3/8″BSP |
|
Z AL 12 R 1/2WD |
12 |
L |
1/2″BSP |
|
Z AL 15 R 3/8WD |
15 |
L |
3/8″BSP |
|
Z AL 15 R 1/2WD |
15 |
L |
1/2″BSP |
|
Z AL 15 R 3/4WD |
15 |
L |
3/4″BSP |
|
Z AL 18 R 1/2WD |
18 |
L |
1/2″BSP |
|
Z AL 18 R 3/4WD |
18 |
L |
3/4″BSP |
|
Z AL 22 R 1/2WD |
22 |
L |
1/2″BSP |
|
Z AL 22 R 3/4WD |
22 |
L |
3/4″BSP |
|
Z AL 22 R 1WD |
22 |
L |
1″BSP |
|
Z AL 28 R 3/4WD |
28 |
L |
3/4″BSP |
|
Z AL 28 R 1WD |
28 |
L |
1″BSP |
|
Z AL 35 R 1WD |
35 |
L |
1″BSP |
|
Z AL 35 R 1 1/4WD |
35 |
L |
1″1/4BSP |
|
Z AL 42 R 1 1/2WD |
42 |
L |
1″1/2BSP |
|
Z AS 6 R 1/4WD |
6 |
S |
1/4″BSP |
|
Z AS 8 R 1/4WD |
8 |
S |
1/4″BSP |
|
Z AS 8 R 3/8WD |
8 |
S |
3/8″BSP |
|
Z AS 8 R 1/2WD |
8 |
S |
1/2″BSP |
|
Z AS 10 R 1/4WD |
10 |
S |
1/4″BSP |
|
Z AS 10 R 3/8WD |
10 |
S |
3/8″BSP |
|
Z AS 10 R 1/2WD |
10 |
S |
1/2″BSP |
|
Z AS 12 R 1/4WD |
12 |
S |
1/4″BSP |
|
Z AS 12 R 3/8WD |
12 |
S |
3/8″BSP |
|
Z AS 12 R 1/2WD |
12 |
S |
1/2″BSP |
|
Z AS 14 R 3/8WD |
14 |
S |
3/8″BSP |
|
Z AS 14 R 1/2WD |
14 |
S |
1/2″BSP |
|
Z AS 16 R 3/8WD |
16 |
S |
3/8″BSP |
|
Z AS 16 R 1/2WD |
16 |
S |
1/2″BSP |
|
Z AS 16 R 3/4WD |
16 |
S |
3/4″BSP |
|
Z AS 20 R 1/2WD |
20 |
S |
1/2″BSP |
|
Z AS 20 R 3/4WD |
20 |
S |
3/4″BSP |
|
Z AS 25 R 3/4WD |
25 |
S |
3/4″ BSP |
|
Z AS 25 R 1WD |
25 |
S |
1″BSP |
|
Z AS 25 R 1 1/4WD |
25 |
S |
1″1/4BSP |
|
Z AS 30 R 1WD |
30 |
S |
1″BSP |
|
Z AS 30 R 1 1/4WD |
30 |
S |
1″1/4 BSP |
|
Z AS 30 R 1 1/2WD |
30 |
S |
1″1/2BSP |
|
Z AS 38 R 1 1/4WD |
38 |
S |
1″1/4BSP |
|
Z AS 38 R 1 1/2WD |
38 |
S |
1″1/2BSP |
