Прямой UNF

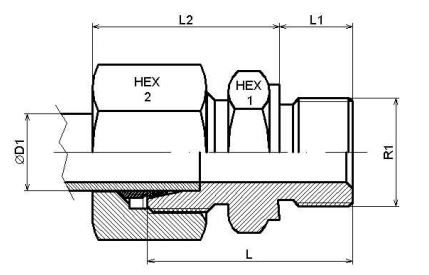

Прямой штуцер, UNF резьба, в сборе с гайкой и кольцом, нержавеющая сталь AISI 316-L
|
Код |
Труба |
Серия |
резьба |
|
Z AL 8 7/16 UNF |
8 |
L |
7/16″ UNF |
|
Z AL 10 7/16 UNF |
10 |
L |
7/16″ UNF |
|
Z AL 12 3/4 UNF |
12 |
L |
3/4″ UNF |
|
Z AL 12 9/16 UNF |
12 |
L |
9/16″ UNF |
|
Z AL 15 3/4 UNF |
15 |
L |
3/4″ UNF |
|
Z AL 18 7/8 UNF |
18 |
L |
7/8″ UNF |
|
Z AL 22 1 1/16 UNF |
22 |
L |
1″ 1/16 UNF |
|
Z AL 28 1 5/16 UNF |
28 |
L |
1″ 5/16 UNF |
|
Z AL 35 1 5/8 UNF |
35 |
L |
1″ 5/8 UNF |
|
Z AS 8 7/16 UNF |
8 |
S |
7/16″ UNF |
|
Z AS 10 9/16 UNF |
10 |
S |
9/16″ UNF |
|
Z AS 12 9/16 UNF |
12 |
S |
9/16″ UNF |
|
Z AS 16 3/4 UNF |
16 |
S |
3/4″ UNF |
|
Z AS 20 7/8 UNF |
20 |
S |
7/8″ UNF |
|
Z AS 25 1 5/16 UNF |
25 |
S |
1″ 5/16 UNF |
|
Z AS 30 1 5/16 UNF |
30 |
S |
1″ 5/16 UNF |
|
Z AS 38 1 5/8 UNF |
38 |
S |
1″ 5/8 UNF |
